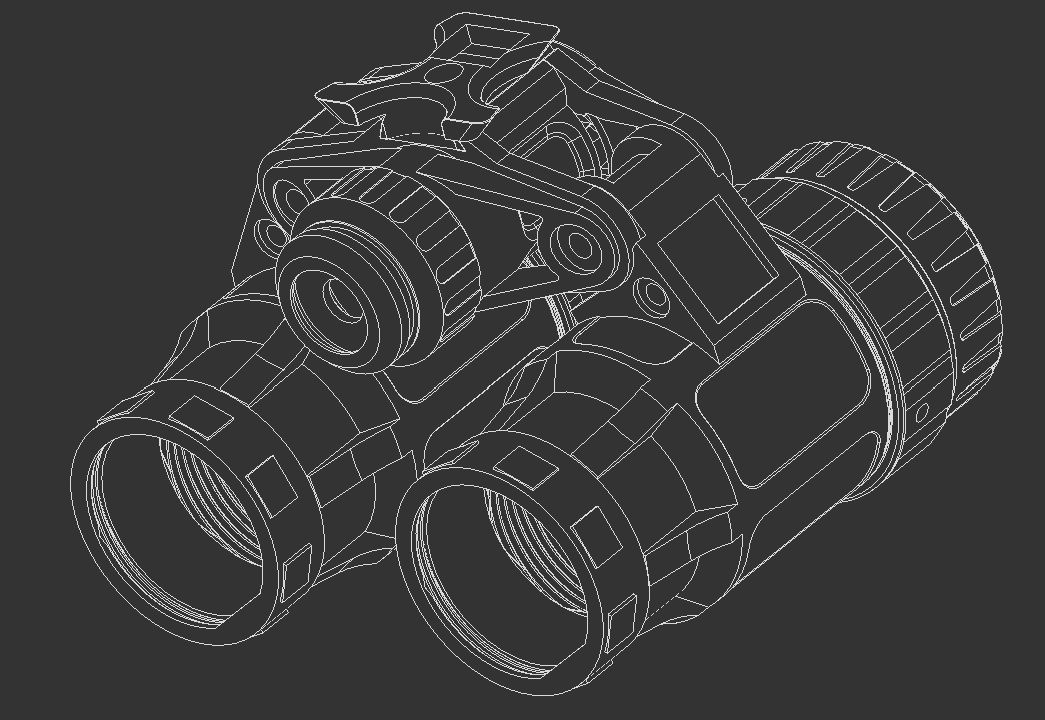

Welcome to the PVS-69 Alpha 1.1 release
This pack contains the files for the 69 Alpha Bino and Mono and the battery pack
YOU DO NOT NEED TO OPEN THE ZIP FILES!
I get an email about that like every day. you just upload the zip files to OSHPARK, JLCPCB or PCBWAY.
in each file, there is a readme. READ THEM
Due to recent intellectual property violations, I will no longer distribute step files.
4x Brass Flat Washer 8mm ID, 16mm OD, 1mm Thick https://amzn.to/3QMApJP
1x M3x8 bolt (you can always just cut down one of the 40mm bolts)https://amzn.to/3QRMrSh
1xM3 heat sethttps://amzn.to/3kt2Ctd
**m3 Fender washer (optional) its good to use them if youre printing a soft plastic.https://amzn.to/3XAU5CL
Female Dc jackhttps://amzn.to/3iMiJBI
M3 Nylock nutshttps://amzn.to/3IVNejl
spring connectors. you can choose to use the pogo pins or the leaf connector.
**3.3v stepdown buckhttps://www.pololu.com/product/2842
2x PVS-14 eye piece. these can get rather expensive but the Chinese ones on alibaba work finehttps://www.alibaba.com/product-detail/PVS14-eyepi...
2x objective lenses. if youre using analog you will use PVS-14 lenses. for these, you can also use Chinese lenses.
the same seller of the eye pieces also sells them but i would recommend not cheaping out on this end as cheap lenses will have less clarity.
For the PCBs, the files are formatted for OSHPARK. https://oshpark.com/
there are 3 zipped files. you only need one of the bridge files however if you choose the regulated file you will need the polulo 3.3v buck.
The boards are extremely cheap however I do suggest the swift service as it's only a few dollars more and saves a lot of time.
for printed parts you will need
1x front plate
1x left pod
1x right pod
2x PVS-14 eye piece bodies
**2x 69 adjustment rings (you can use the PVS-14 adjustment rings)
2x lock rings
*2x D rings (optionally you can use the ones that accept M3 grub screws)
**2X C rings (the C clips from the PVS-14 lens work better)
1x TPU Button
** indicates options
a build guide is coming soon so stay tuned!
2-4 week lead time minimum
I do not provide refunds solely because you failed to read the line above stating lead time is 2-4 weeks. These kits are in high demand and I’m one dude. Please be patient
Simple orders like 1 battery pack kit or hardware with nothing else can be filled in as little as a week
